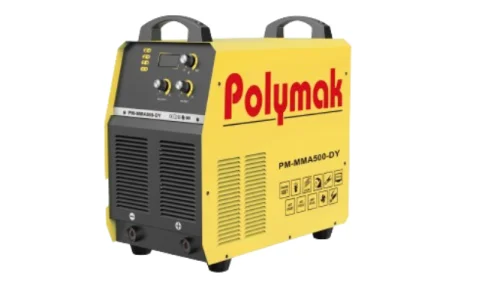

Welding Machine
PM-MMA500-DY
π Description
ARC Welding Machine 500A
π Specifications
| Rated input voltage | 415V Β± 10% |
|---|---|
| Rated input current | 35.2 |
| Rated input power capacity | 26kW |
| Output current range (a) | 20 - 400 |
| Output circuit voltage (v) | 36 |
| Rated duty cycle(%) | 60 |
| Arc force | 1-10 |
| Power efficiency (%) | 85 |
| Power factor (%) | 0.73 |
| Protection & insulation class | IP21/F |
| Application rod (mm) | 1.6 -5.0 |
| Mos / igbt | IGBT β Modular |
| Weight | 18 Kgs |
| Image count | 1 |
